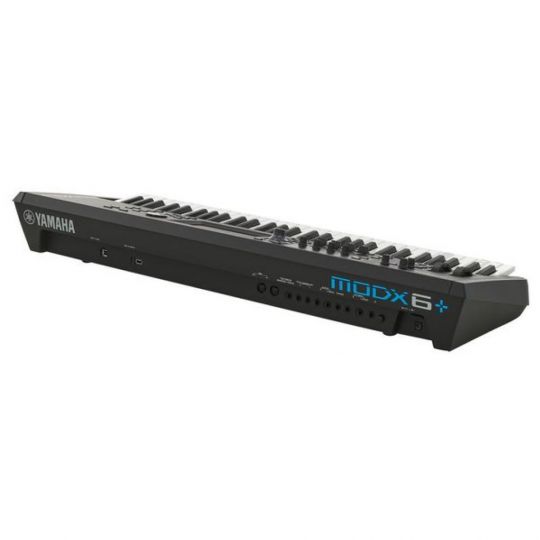

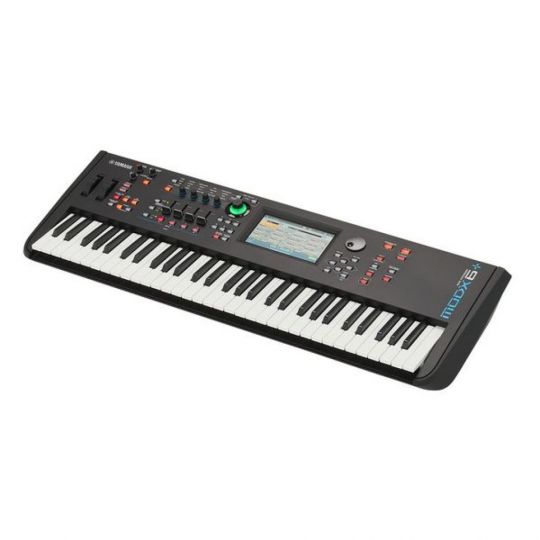

Yamaha MODX6+
compact music synthesizer with 61 keys;
semi-weighted keyboard (velocity sensitive); motion control synthesis;
sample-based AWM2 synthesis with 128 voices;
5.67 GB waveform ROM + 1.75 GB flash ROM for user waveforms;
FM-X synthesis with 128 voices; 8 operators and 88 algorithms;
integrated effects, Part-EQ, Master-EQ, 2.227 preset performances (up to 16 parts per performance for splits, layers, MIDI multimode);
Super Knob controls up to 128 parameters simultaneously; 7-inch colour VGA touch screen; 4 rotary controllers; 4 faders; integrated 4/10 USB audio interface for PC/Mac/iOS;

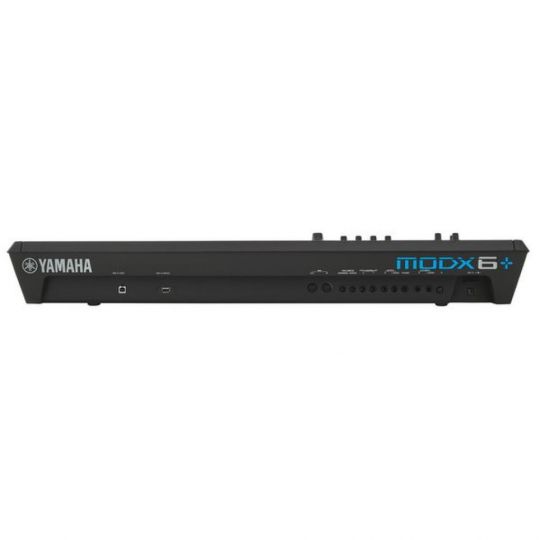

connections: 2x line input 6.3 mm jack, 2x line output 6.3 mm jack, stereo headphone output 6.3 mm jack, USB host and device connections, MIDI I/O, 2x pedal input; 2x footswitch input; external power supply 12V DC
Number of simultaneous Voices 128
MIDI interface1x In, 1x Out
EffectsMultieffect processor
Number of Analog Outputs2
Number of analog outputs2
Pedal Connections2x Pedal, 2x Footswitch
Pedal Connectors2x Pedal, 2x Footswitch
Dimensions937 × 331 × 134 mm
Optional Expansion Boards No
Dimensions in mm937 x 331 x 134
