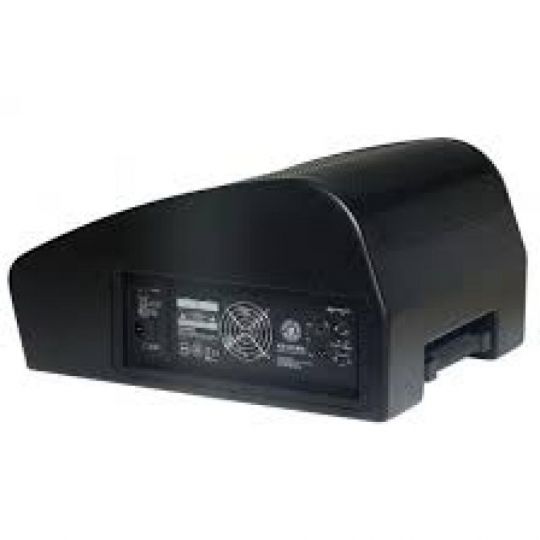

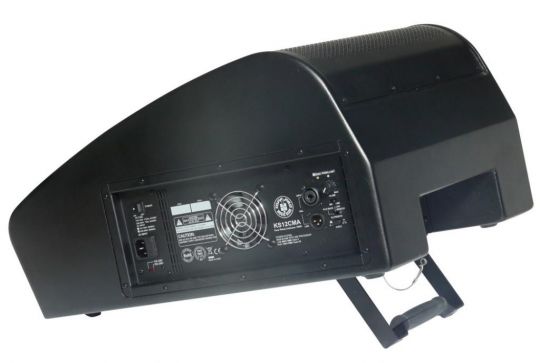

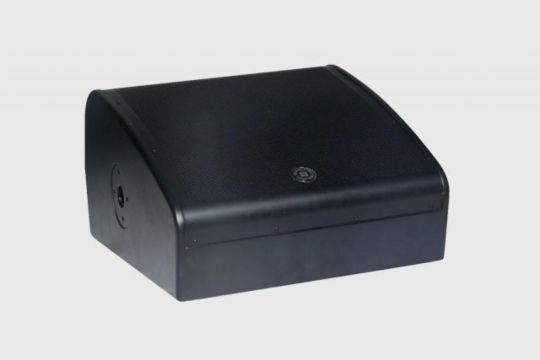

| Model Active | KS 12CMA |
| System Type | 2-Way Active Monitor with DSP |
| Transducer Low | 12" Woofer, 3" Voice Coil |
| Transducer Driver | 1" Compression Driver, 1.75" Voice Coil |
| Nominal Coverage (HV) | 60° x 40° (-6dB) |
| Frequency Response | 60Hz - 20KHz (-6dB) |
| Crossover Frequency | At 1.5KHz with 24dB filter slope, Linkwitz-Riley Type |
| Max SPL | 128dB Max. |
| Power Rating | 1600W PROGRAM / 3200W PEAK |
| Input Connector | Line/Mic - Combo/Link - XLR |
| Line Input | Combo Connector 0dBu |
| DSP Presets | VOCAL1 / FLAT / VOCAL2 |
| External Controls | Volume Control / Power ON with Green LED / Clip Limiter with Red LED / Ground Lift / Switch for Input Sens |
| Electronic Protections | Thermal / Convection-Fan / Overload / Digital Lim. / Compressor |
| Power Supply | 115V 60Hz / 230V 50Hz Switchable |
| Enclosure Construction | Trapezoidal, Plywood cabinet, resistant black paint, metal grille with black foam, rubber feet |
| Monitor angle | Adjustable (20°, 25°,30°,35°,40°) |
| Dimensions (HxWxD) | 291.9 x 470 x 570.3mm |
