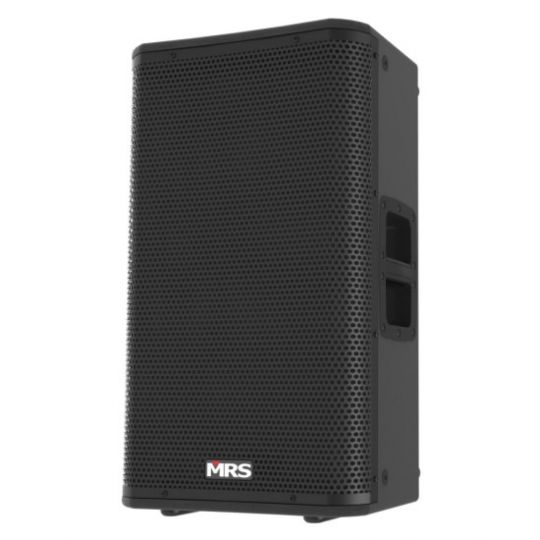

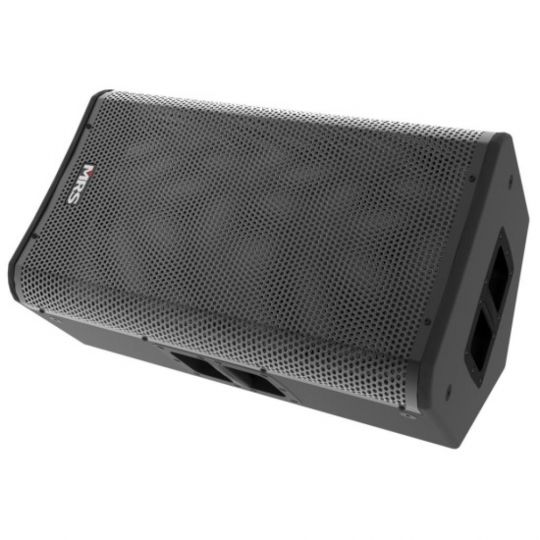

2-WAY POWERED LOUDSPEAKER
Low-frequency: 12″ cone transducer
High-frequency: 1.75″ diaphragm compression driver
Frequency Response (-6 dB): 52Hz – 18kHz
Frequency Range (-10 dB): 48Hz – 20kHz
Nominal Coverage (-6 dB): 75° axisymmetric
Maximum SPL(1 meter): 131 dB peak
Amplifiers Power Output: 1000 W Class D (500 W LF, 500 W HF) continuous
Input Impedance: Channel A XLR / 1⁄4″ Mic gain
Mic gain setting: 0dB, +12dB, +24dB, +36dB
Channel B XLR / 1⁄4″ 3: 8k balanced / 19k unbalanced
Channel BRCA:10k
Controls: Power • Gain A • Gain B • Channel A Input Gain ( 0dB / 12dB / 24dB / 36dB) • LF Mode (Ext Sub / Norm / ENTSUB) • HF Mode (Flat / Vocal Boost) Front LED (On / Off / Limit)
Indicators: Power • Signal A • Signal B • Standby • Limit • Mic (24 dB and 36 dB settings)

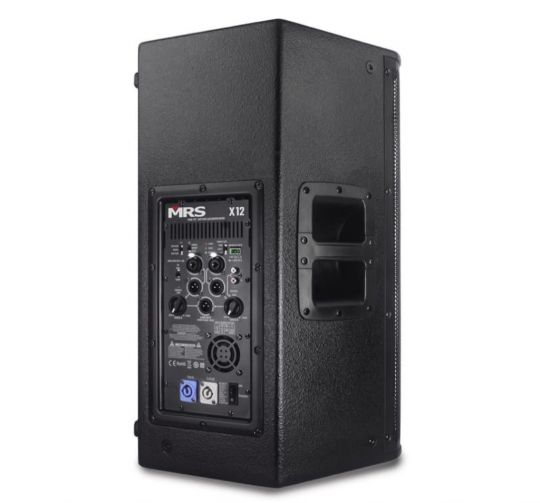

Connectors: Balanced female XLR / ¼” line/mic level input • Balanced female XLR / ¼” line level input • Dual Balanced male XLR full range line level out • Balanced male XLR “mix” out • Stereo RCA line level input • Remote gain control • Locking IEC power connector
Cooling: On demand, 50 mm variable speed fan
Amplifier Protection: Thermal limiting • Output over current • Over Temperature muting • GuardRail
Transducer Protection: Thermal limiting • Excursion limiting
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8 Power: 100 VAC, 2.3 A • 120 VAC, 2.01 A • 230 VAC, 1.13 A
Enclosure: 15 mm painted birch plywood
Finish: Black textured paint
Grille: Black powder coated 16 gauge steel
Dimensions: 660 Width x 381 Depth x 391 Height mm
Weight: 22.2 kg
