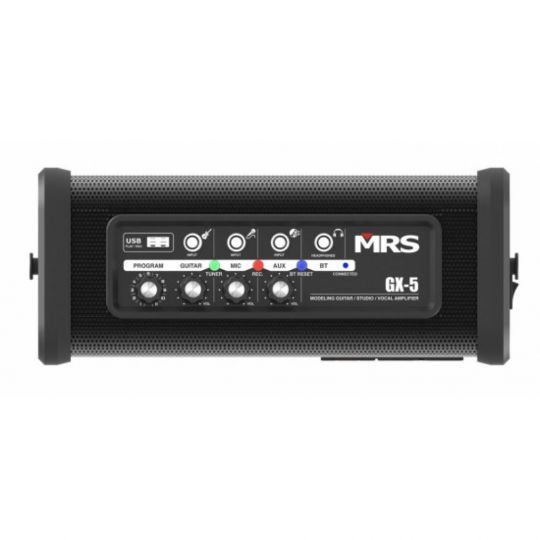

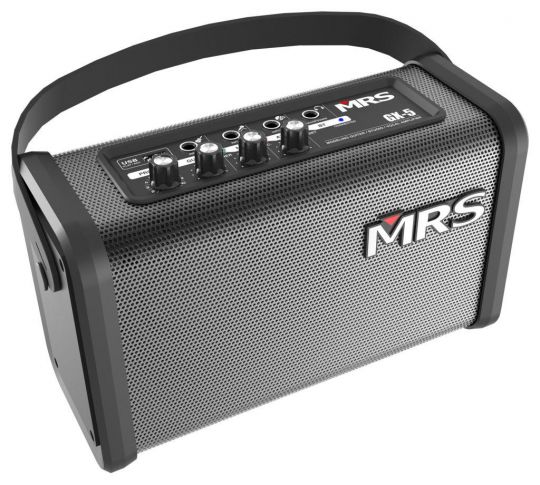

Digital Mixer + Program + USB MP3 Player & Recorder
Specifications
Model No.: MRS GX-5
Power: AC 110-230V-50Hz/60Hz
Speaker: 5.5 inch full frequency speaker
Frequency response(-3dB): 70Hz~20kHz
Dimension(Width * Height * Depth) : 280*170*115mm
Weight : 2.45 kg
Music Channel
Max output(W) (1 KHz, 3% distortion): 15 Watts
Noise(mV)(Rated A weight ) : 2
S/N (Rated, 1 KHz input, THD 1 %, A weight) : 71
THD(%) (Main channel, rated, 1 KHz, A weight) : 0.1
Frequency response(dB(A)) (Main channel, 20Hz-1 KHz-20KHz ) : ±3
Overload voltage(V) (Main channel, 1 KHz, THD 1%) : 1.1
Sensitivity(mV))( 1KHz, THD 3% ) : 290
Instrument Channel
Max output(W) (1 KHz, 3% distortion): 15 Watts
Noise(mV)(Rated A weight ) : 4
S/N (Rated, 1 KHz input, THD 1 %, A weight) : 65
THD(%) (Main channel, rated, 1 KHz, A weight) : 0.2
Frequency response(dB(A)) (Main channel, 20Hz-1 KHz-20KHz ) : ±3
Overload voltage(V) (Main channel, 1 KHz, THD 1%) : 0.4
Sensitivity(mV))( 1KHz, THD 3% ) : 110
Microphone Channel
Max output(W) (1 KHz, 3% distortion): 15 Watts
Noise(mV)(Rated A weight ) : 3
S/N (Rated, 1 KHz input, THD 1 %, A weight) : 67
THD(%) (Main channel, rated, 1 KHz, A weight) : 0.1
Frequency response(dB(A)) (Main channel, 20Hz-1 KHz-20KHz ) : ±3
Overload voltage(V) (Main channel, 1 KHz, THD 1%) : 0.22
Sensitivity(mV))( 1KHz, THD 3% ) : 290
