Características

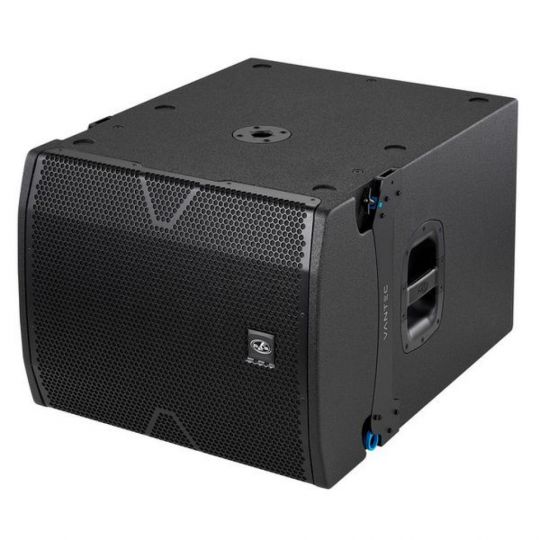

Altavoz 18″ DAS 18FW
Amplificador Clase D 2000 Wpico
Procesado digital de señal (DSP)
Interruptor EQ graves «Deep-Loud»
Filtro variable «pasa-bajos» 80 Hz-125 Hz

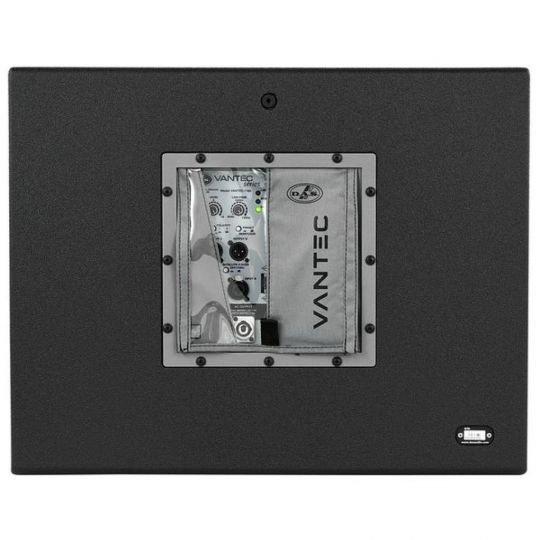

Interruptor ON/OFF con LED en la placa trasera

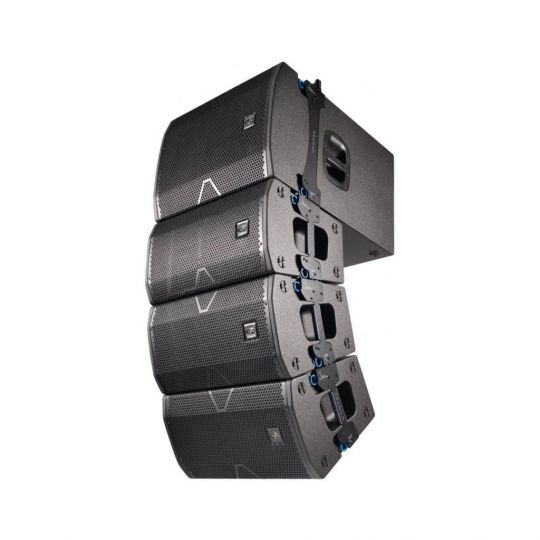

Rigging compatible con VANTEC-20A
Zócalo para mástil en la parte superior
Aplicaciones
Conciertos y A/V corporativo
Portable y clubes con música en vivo
Salas de conciertos, teatros y auditorios
Centros de culto
| Performance | |
| Frequency Range (-10 dB) | 35 Hz – 125 Hz |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 1000 W |
| Nominal Amplifier Power (peak) | 2000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 3 V (+12 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 2.2 A/4.4 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 490 x 615 x 785 mm 19,3 x 24,2 x 30,9 in |
| Net Weight | 44,0 kg ( 97,0 lb ) |
| Components | |
| LF Driver | 18FW |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 730 x 660 x 880 mm 28,7 x 26,0 x 34,7 in |
| Shipping Weight | 48,0 kg ( 105,6 lb ) |
