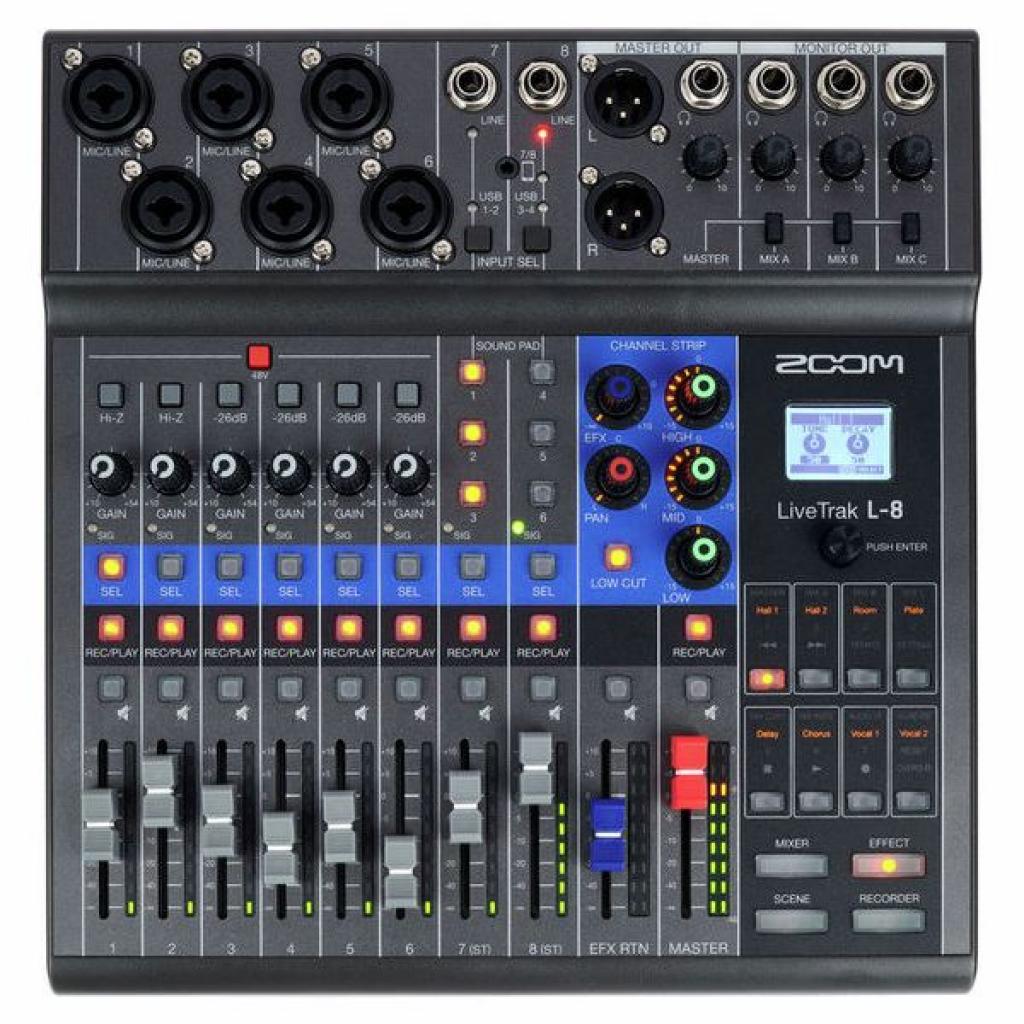

ZOOM LIVETRAK L8

Compact Podcast Mixer, Audio Interface and Recorder

• 8-Channel mixer
• Channels 1-2 for microphone, line and instrument signals - XLR / TRS combo socket
• Channels 3-6 for microphone and line signals - XLR / TRS combo socket
• Channels 7-8 for line signals - 6.3 mm jack
• USB stereo playback and telephone playback - 3.5 mm TRRS
• Mix-minus function for preventing audio feedback from dial-in guests
• Per channel: 3-Band EQ, low-cut filter, panorama control, effects loop
• 48 V Phantom power switchable
• Effects section with 8 different programs
• 6 Assignable sound pads for jingles, intros, outros and sound effects
• 4 Headphone outputs (6.3 mm TRS) for main mix and 3 monitor mixes
• Balanced stereo output (XLR)
• 7 Scene memory slots for mixes
• Battery operation possible (4x AA Mignon, not included in the delivery)
• Record up to 12 tracks on SD card or computer (USB) with a maximum of 24-bit / 96 kHz
• Simultaneously recording on SD card and computer is possible with a maximum of 24-bit / 48 kHz
• Integrated USB audio interface with 12 inputs and 4 outputs
• USB 2.0
• System requirements: Windows 7 or later, macOS 10.12 or later
• Dimensions (W x D x H): 282 x 268 x 74 mm
• Weight: 1.56 kg
