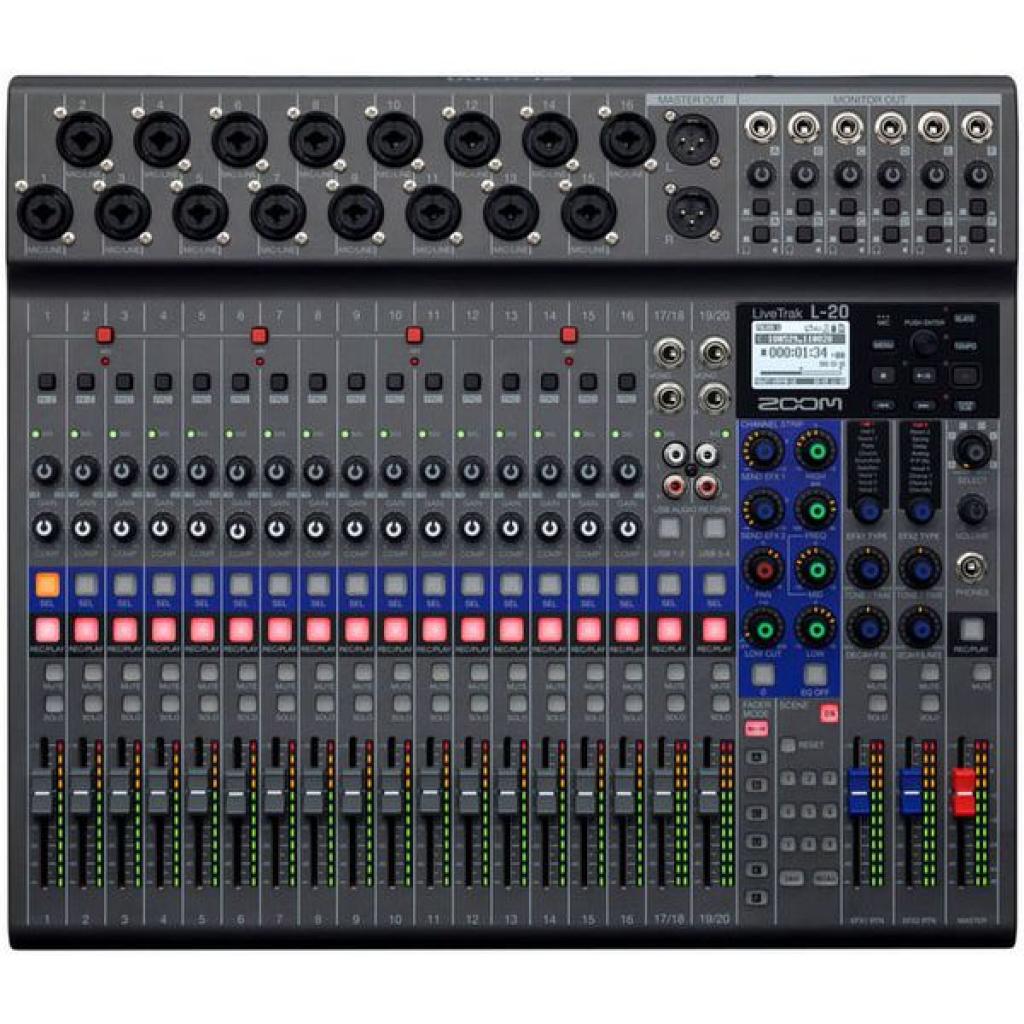

ZOOM LIVETRAK L20

Combined Mixer, Audio Interface and Recorder

• 20 Discrete channels
• 16 Mono plus 2 stereo channels with XLR and 1/4" phone jacks
• Simultaneous recording of 22 tracks
• Playback of 20 tracks
• USB audio interface with 22 inputs and 4 outputs
• Audio recording up to 24-bit / 96 kHz on SD storage media
• 48 V phantom power
• Hi-Z Connectors (channels 1-2)
• 26 dB Pad (channels 3 to 16)
• Compressor per channel with one knob (channels 1 to 16)
• Solo and mute buttons for each channel
• Low cut per channel between 40 - 600 Hz variably adjustable
• Sum outputs and six configurable monitor outputs
• Monitor outputs can be configured as headphone output or normal line-level output
• Additional separate headphone output
• Memory function for up to nine mixer scenes
• 20 Internal, editable chorus, delay and reverb effects
• Two effect buses
• Built-in talkback microphone
• Pre-record function
• Class-compliant operation (for iOS compatibility)
• Automatic start and stop recording possible
• Import and export of projects via the USB 2.0 interface
• Compatible functions for the ZOOM FS01 footswitch
• Dimensions (W x D x H): 445 x 388.4 x 82.6 mm
• Weight: 3.71 kg
• Includes power supply (AD-19), USB 2.0 cable and quick start guide
