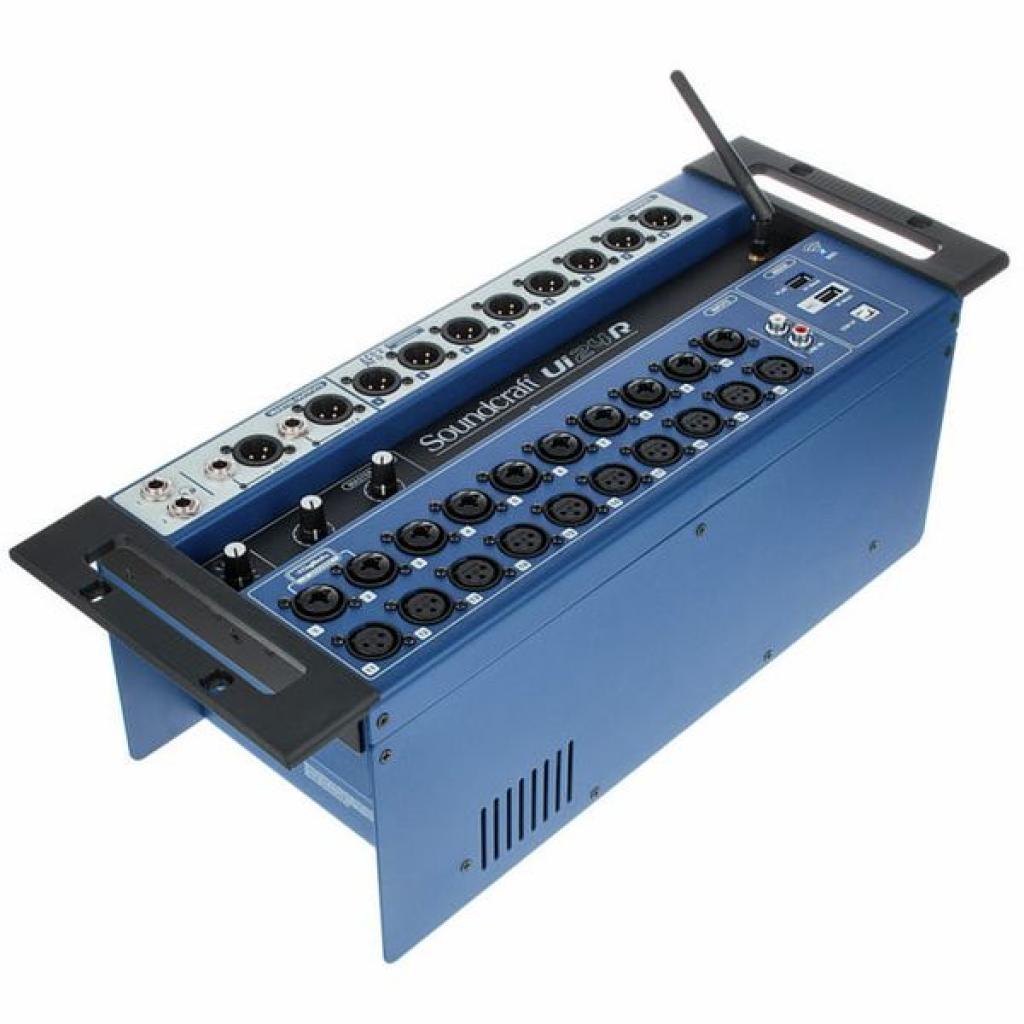

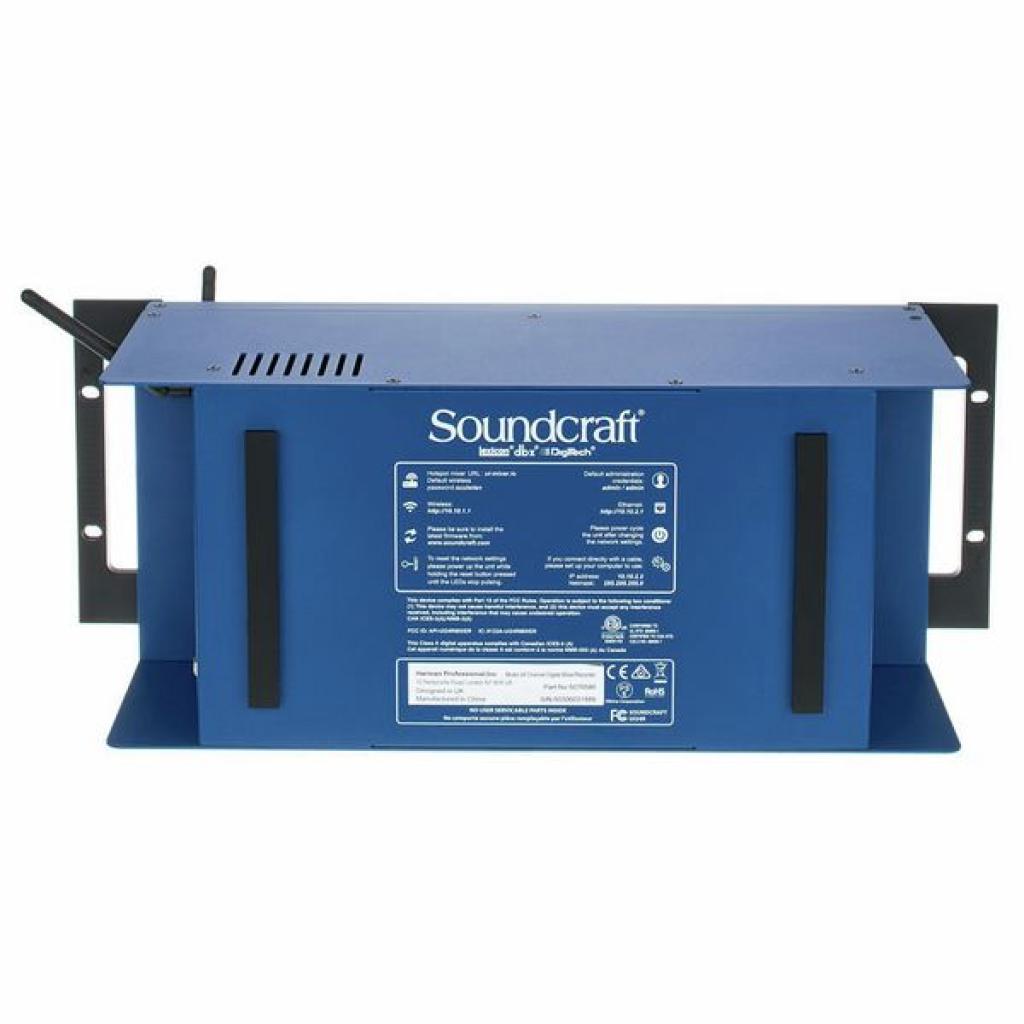

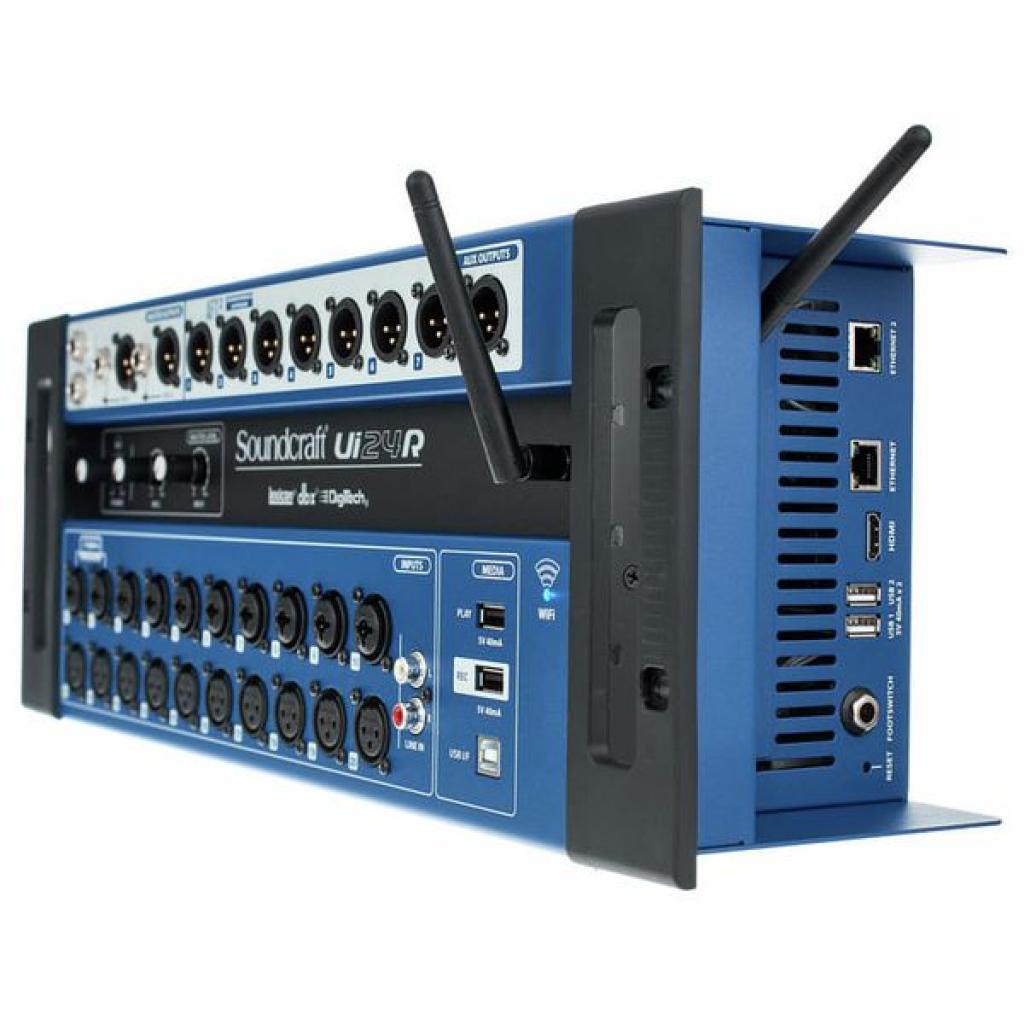

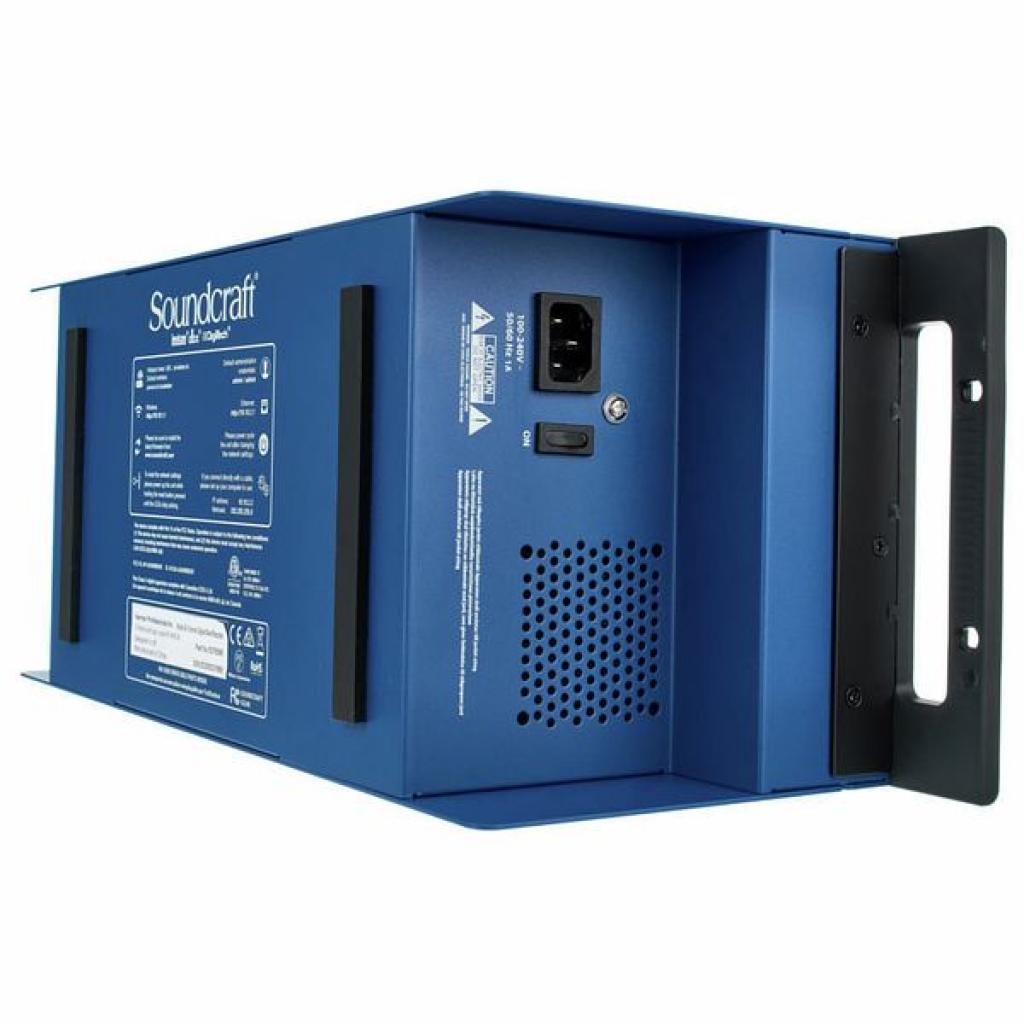

SOUNDCRAFT UI24R RACK

24-Channel mixing console with integrated stage box and DSP

• Parallel multitrack recording to USB drive & DAW
• 20 Mic / Line inputs: 10x XLR, 10x 6.3 mm jack combo
• 2 RCA line inputs
• 2-Channel USB media player (MP3, WAV, AIFF playback)
• 22-Channel USB direct-to-memory recording
• 32-Channel recording interface (I/O via USB-B port)
• Internal sample rate: 48 kHz
• 2 Additional USB ports for controllers & updates
• 2 XLR & jack main outputs
• 8 XLR AUX outputs
• 2 Headphone outputs
• RJ45 Ethernet connector
• HDMI port for mixer control via a monitor
• Integrated dualband WLAN & Ethernet (2 antennas, 2.4 / 5 GHz)
• Compatible with iOS, Android, Windows, Mac OS, Linux (via HTML5)
• Accepts up to 10 devices simultaneously (tablet, smartphone, PC)
• Signal processing from dbx, Lexicon, Digitech
• 20 High-quality Studer designed mic preamps
• Input channels with 250 ms delay, 4-band parametric EQ, gate, compressor, de-esser, HPF
• 2 Channels include DigiTech amp / guitar modelling
• 8 AUX buses with 31-band graphic EQ, AFS2 Feedback Suppression, and dbx compressor
• 120-Band real-time analyser (inputs and outputs)
• 500 ms (approx. 170 m) of delay on the output busses
• 4 Lexicon effects busses (reverb, delay, chorus, room)
• Format: 19" / 4 U
• Dimensions (L x W x D): 177.8 x 482.6 x 165.1 mm
• Weight: approx. 5.1 kg
• Compatible touchscreen:  (not included)
