JBL EON ONE MKII

Features

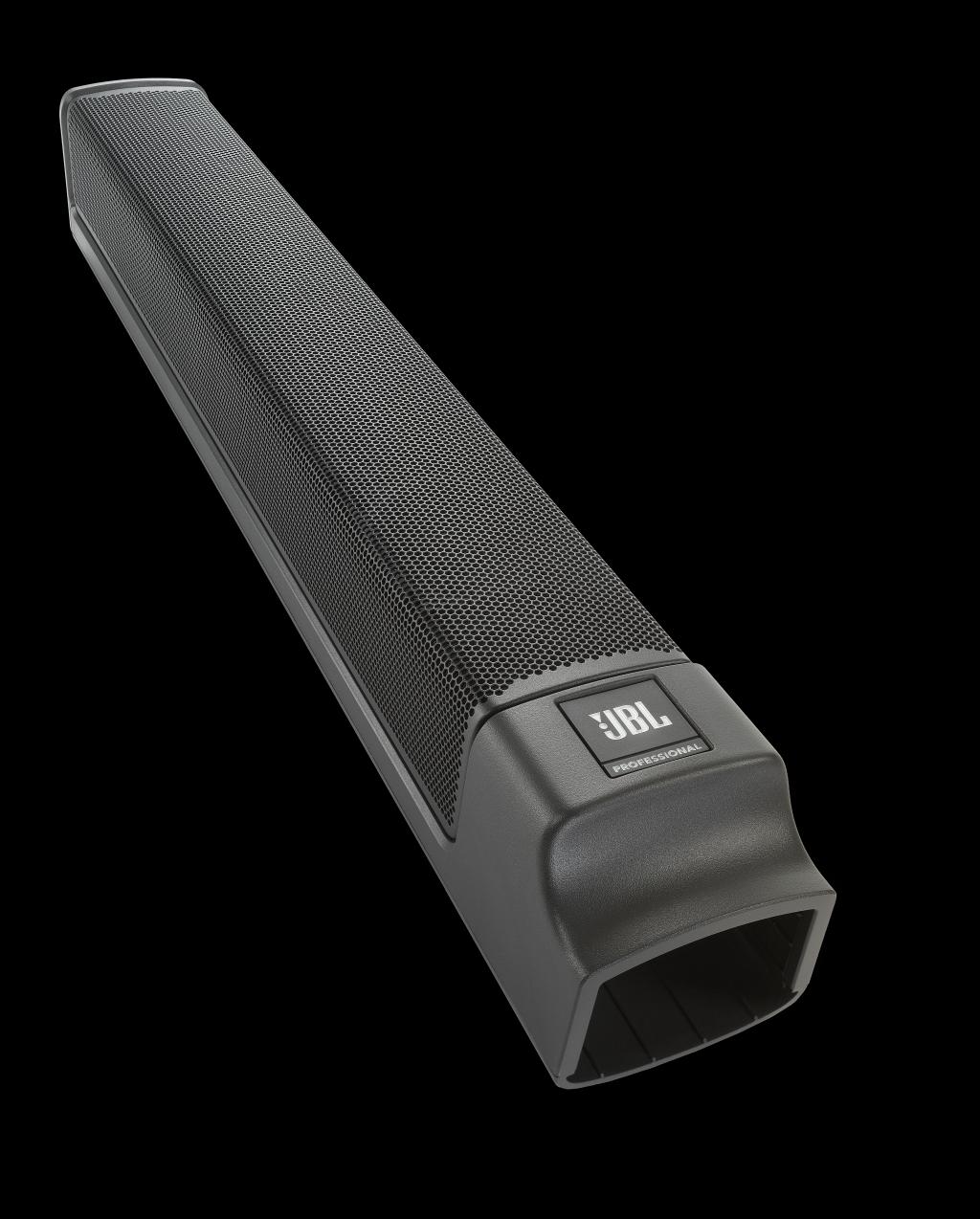

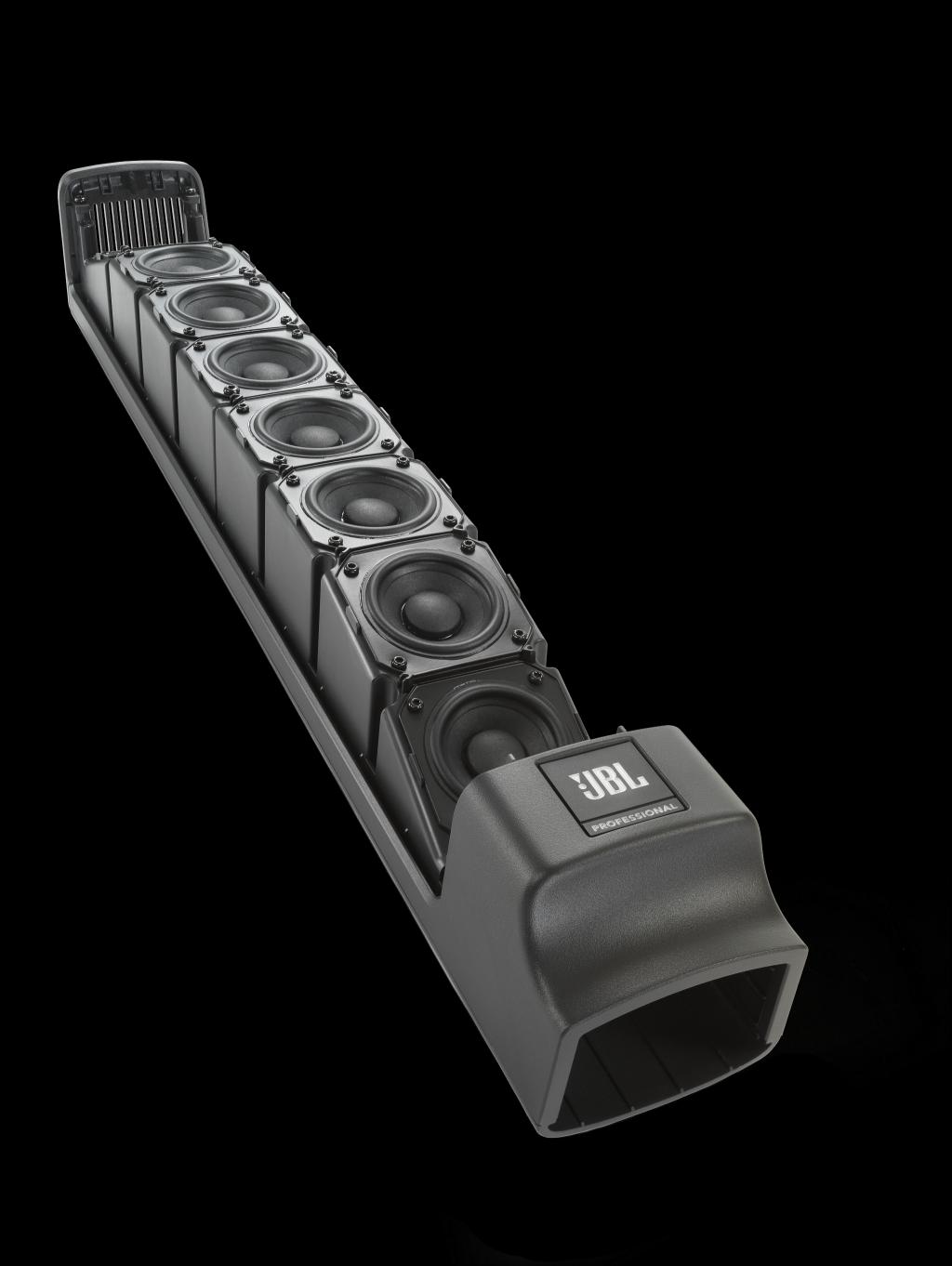

• C-shaped array of 8 2” tweeters delivers superior clarity and 140°H x 30°V dispersion for room-filling sound
• 10” woofer in acoustically optimized cabinet generates natural, smooth low end, down to 37 Hz
• Variable Power Performance automatically optimizes power performance to provide 4 dB higher output when connected to an AC source: 123 dB peak SPL using AC power, 119 dB peak using battery power
• Built-in 1,500-watt (peak) amplifier
• Frequency response: 37 Hz–20 kHz @ -10 dB; 45 Hz–20 kHz @ -3 dB
• Easily swappable battery provides 6 hours of play time; battery is integrated into a column spacer to improve stability and to optimize the cabinet acoustic volume for superior low-frequency response

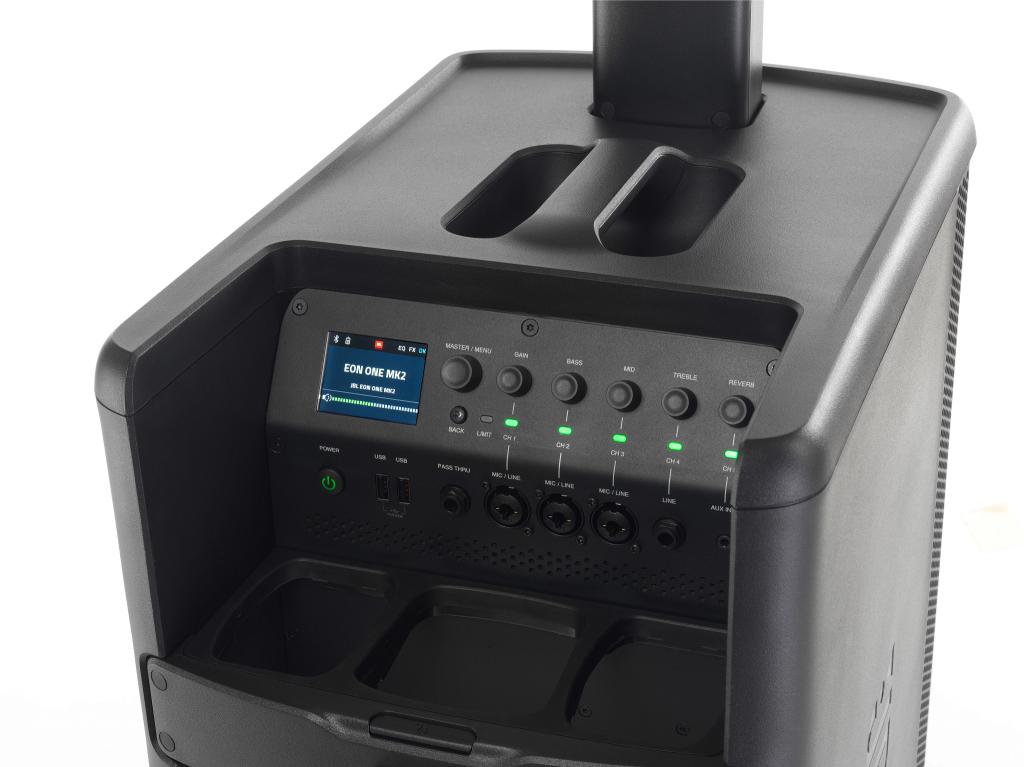

• Built-in 5-channel digital mixer is designed by mix engineers for optimized workflow
• Three fixed EQ knobs allow fast, hands-on access to onboard EQ
• Comprehensive suite of professional-grade Lexicon DSP, including reverb, chorus and delay
• dbx DriveRack Inside technology offers AFS (Automatic Feedback Suppression), 8 bands of parametric EQ, and convenient presets
• Soundcraft Easy Ducking automatically turns down music when speech is detected
• Triple-Tier DSP lets users choose beginner, intermediate or advanced control

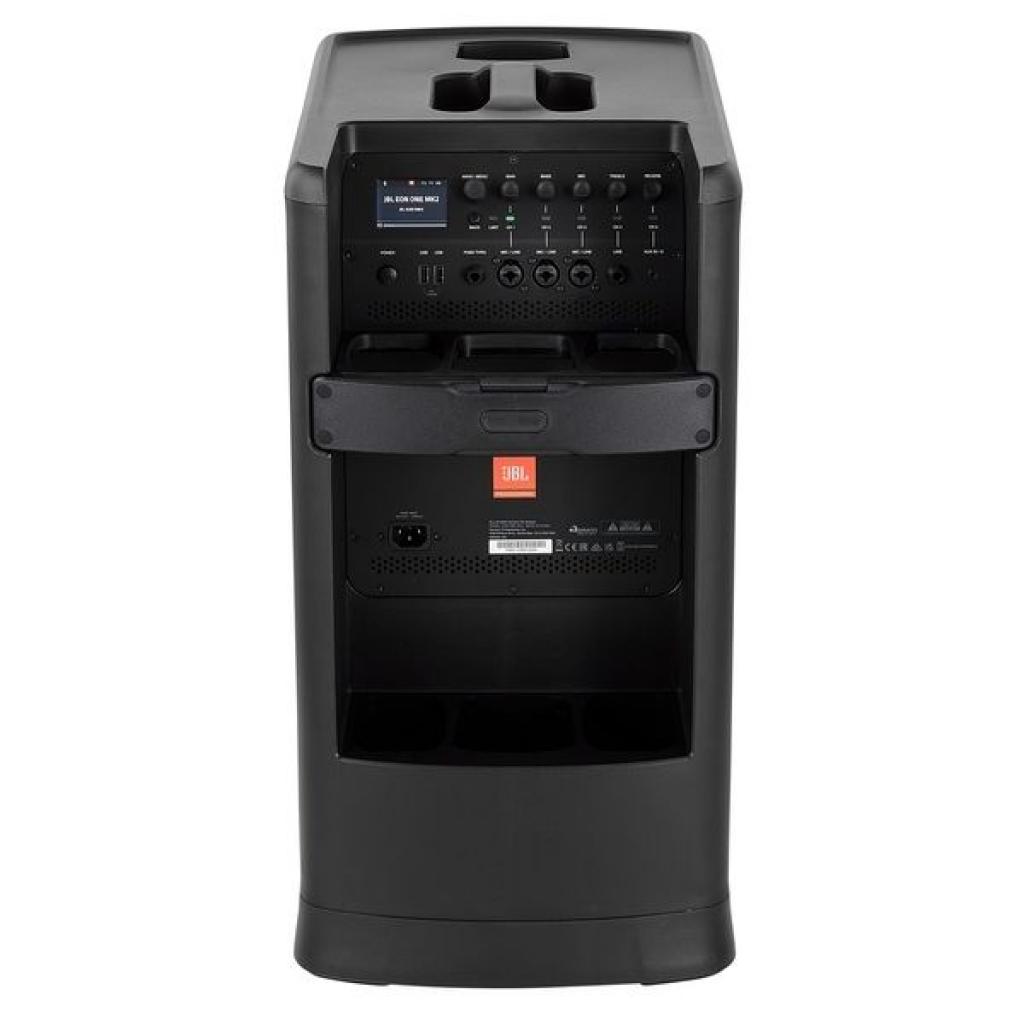

• I/Os include 3 Neutrik XLR Combo jacks, 1 Hi-Z input and a summed 3.5mm/BT input
• ¼” balanced passthrough with independent volume control and speaker delay allows for analog system expansion
• Two channels of true 48V phantom power expand microphone connectivity
• Two USB ports allow device charging from onboard battery or AC power
• Bluetooth 5.0 audio streaming to one device, with control of up 10 units
• Full-color EasyNav LCD provides access to all control parameters
• Simple Success LED meters indicate mixer functions such as mute, signal detection and clipping
• JBL Pro Connect universal app offers control over every function of up to ten systems

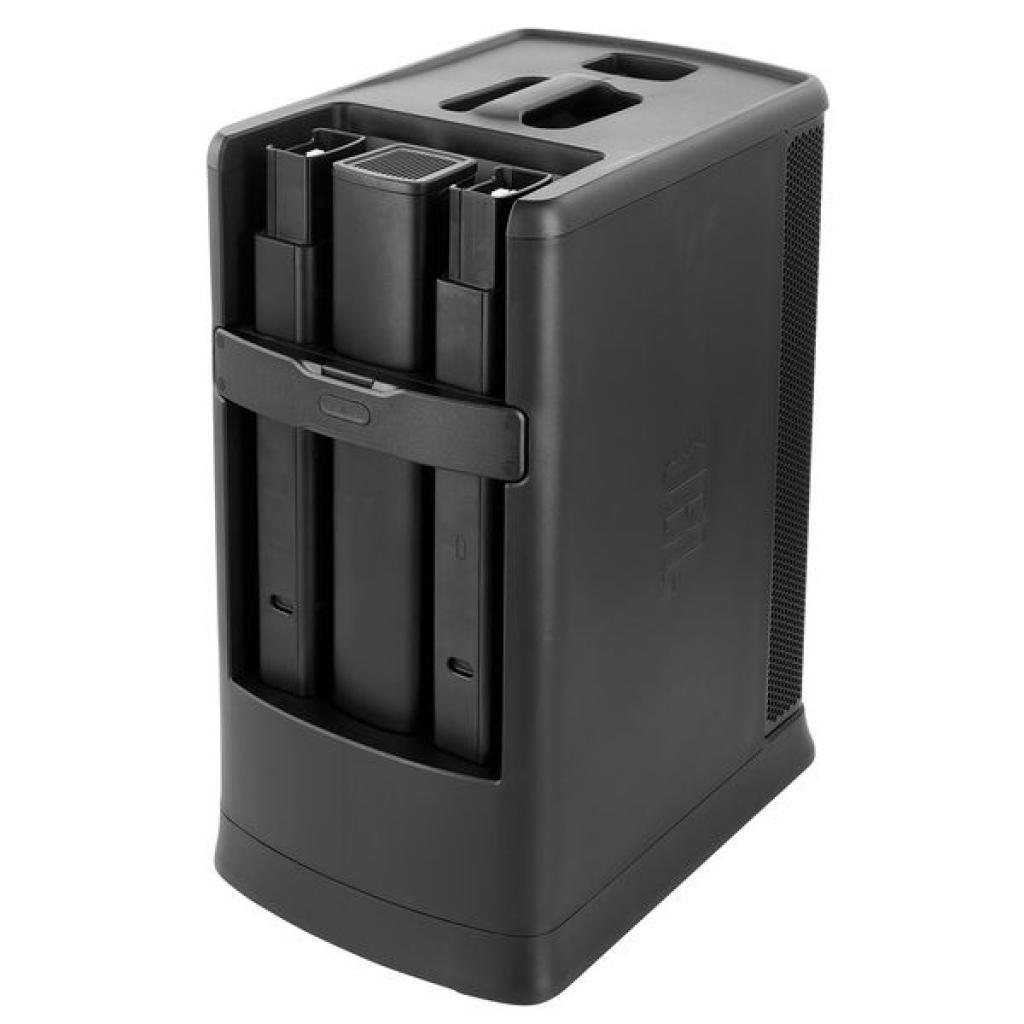

• PA components are stored in the woofer cabinet for easy, one-hand carry
• Ergonomically optimized carry handle minimizes wrist strain
• Road-tough, lightweight polypropylene cabinet with steel grille
• Accessories include dual battery charger, additional batteries
• Weight: 42.5 pounds (19.3 kg)

Specifications

  System Type Powered Column PA Speaker Woofer Size 10” Tweeter Size 2” Tweeter Count 8 Max SPL 123 db/119 dB AC/Battery Freq Range -10 37-20 kHz Freq Range -3 45-20 kHz Hor Dispersion 140° Vert Dispersion 30° Power Rating 1500W Peak
400W RMS AC power input 300W 100-120V or 220-240V Input Impedance 4kΩ balanced Combo
2MΩ balanced Hi-Z Jack
10kΩ 3.5mm single ended 2 channel Crossover Frequency 230 Hz I/O 3 - XLR Combo Jacks
1 - 1/4” Hi-Z
1 - 1/8”/BT Summed
1 - X1/4” balanced Cabinet PP Weight 19.3kg (42.5 lbs.) Gross Weight 22.38kg (49.3 lbs.) Dims 452 x 627 x 730mm(WxDxH)
(17.8 x 24.7 x 28.7 in.(WxDxH)) Battery 97.2 WH, 36V, Lithium Ion
