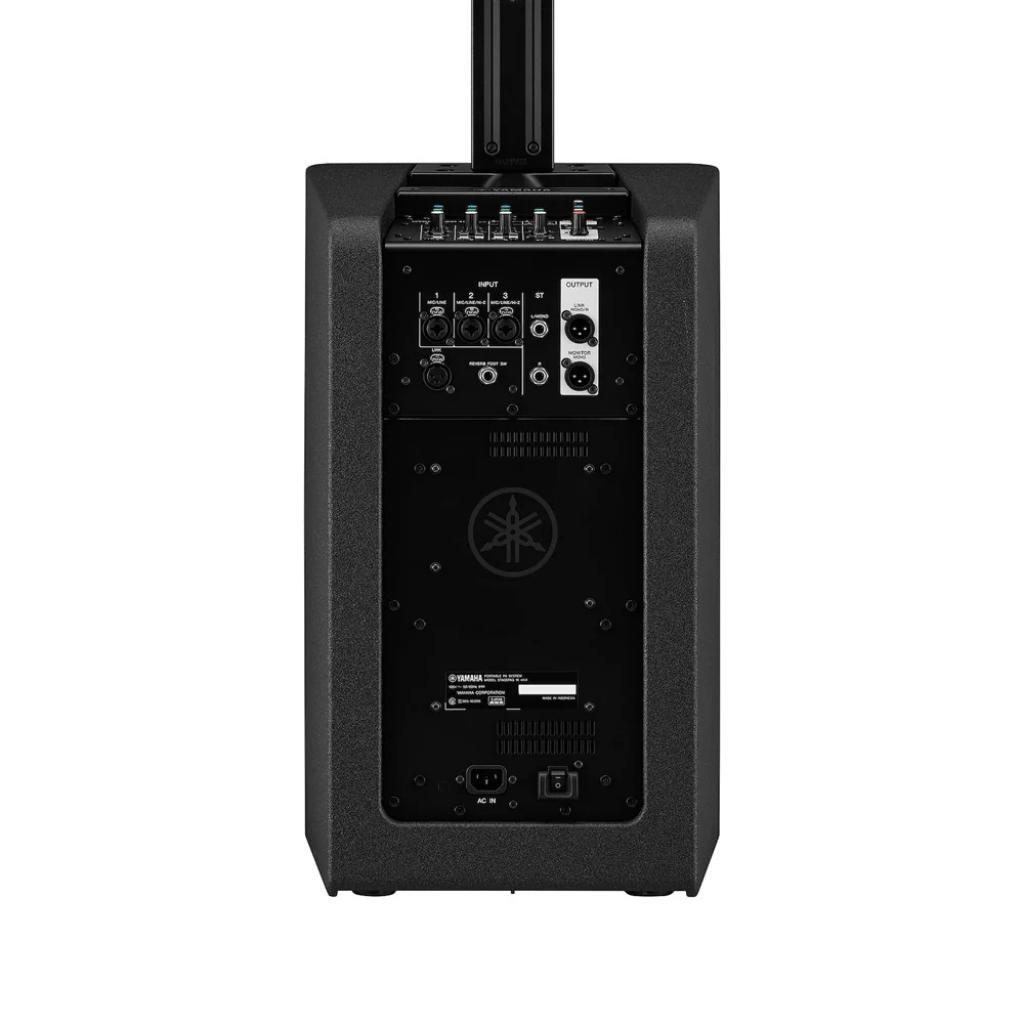

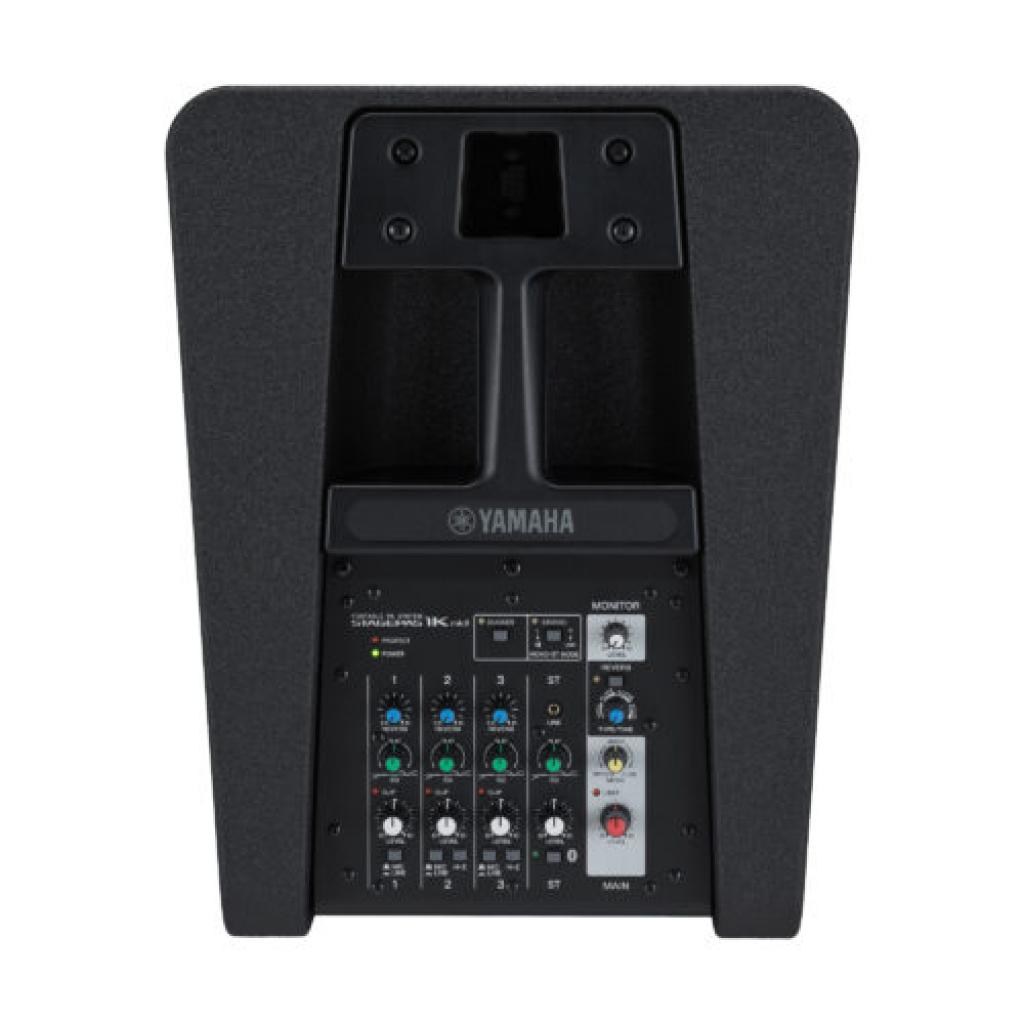

YAMAHA STAGEPAS1K MK2

STAGEPAS 1K mkII

STAGEPAS 1K mkII

Outline

Type

Powered subwoofer with a line array speaker

Mixing capability

Mixing channels

5 (Mono x3 + Stereo x1)

Input channel functions

Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST

Output channel functions

MODE (SPEECH/MUSIC/CLUB)

I/O

Inputs

Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1

Outputs

Link out x1, Monitior out x1

Bluetooth

Bluetooth Ver.5.0, A2DP (SBC, AAC)

Control and others

Reverb foot switch, STAGEPAS Controller (iOS/Android app)

On-board processors

DSP

SPX digital reverb (4 program, parameter control)

General specifications

Speaker type

Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed

Frequency range (-10dB)

37 Hz - 20 kHz

Coverage area

H170ﾟ x V30ﾟ

Crossover

240 Hz

Maximum output level (1m; on axis)

125 dB SPL

Components

LF

Powered subwoofer: 12” (30 cm) Cone

HF

Line array speaker: 1.5” (3.8 cm) Cone x 10

Amplifier class

Class-D

Power rating

Dynamic

1100 W

Power consumption

25 W (Idle), 91 W (1/8 power)

Power requirements

Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz

Handle

Top of powered subwoofer x1

Dimensions (W x H x D)

System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)

Weight

System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
