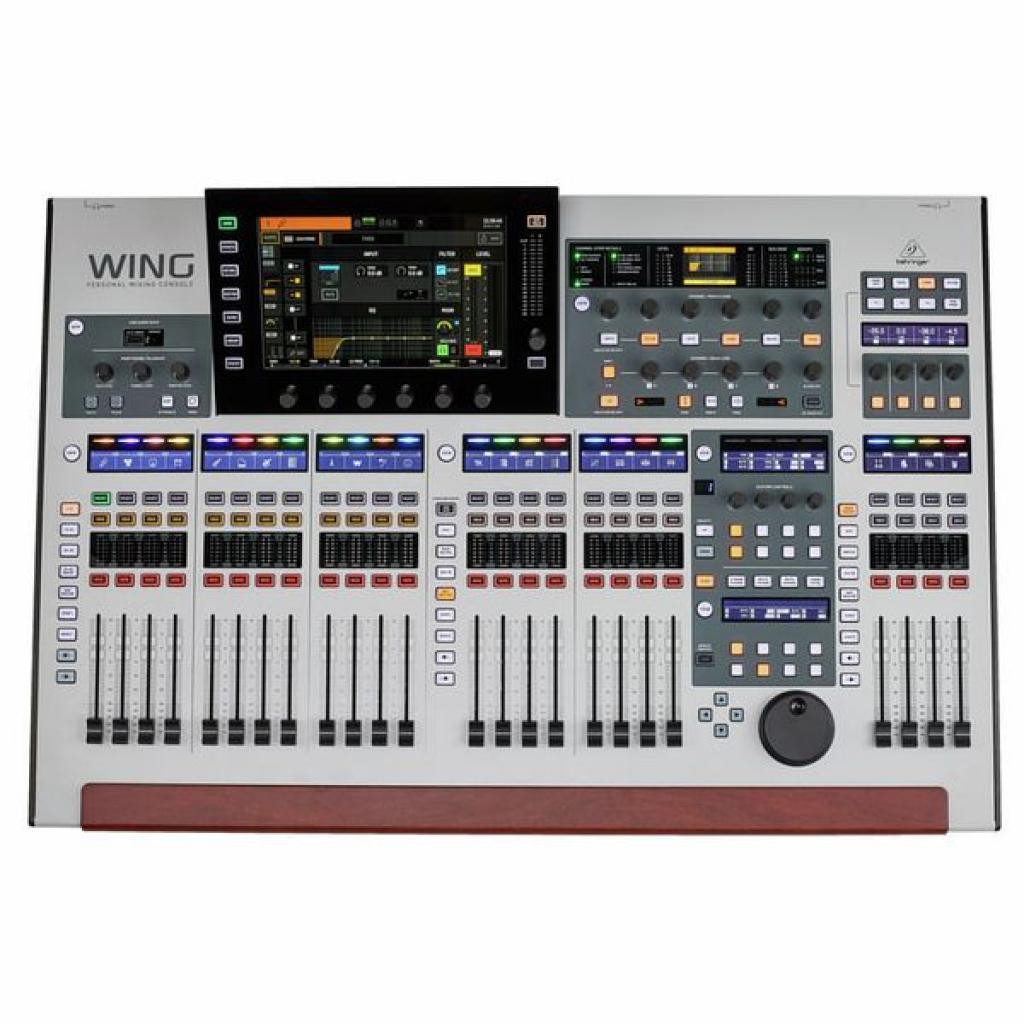

BEHRINGER WING

48-Channel Full Stereo Digital Mixer

• A new routing approach with an emphasis on sources instead of channels
• Fully compatible with Behringer X32 / Midas M32 consoles and stage boxes
• Vintage emulations of EQs, compressors and gates available in each of the 40 stereo inputs
• 40 Stereo inputs
• 8 Stereo AUX inputs
• 28 Buses: 16 stereo AUX, 8 stereo matrices, 4 stereo mains
• 24 Faders in 3 fully programmable sections
• 10'' Touch display with adjustable angle
• Programmable Custom Control section
• 8 Midas Pro microphone preamp

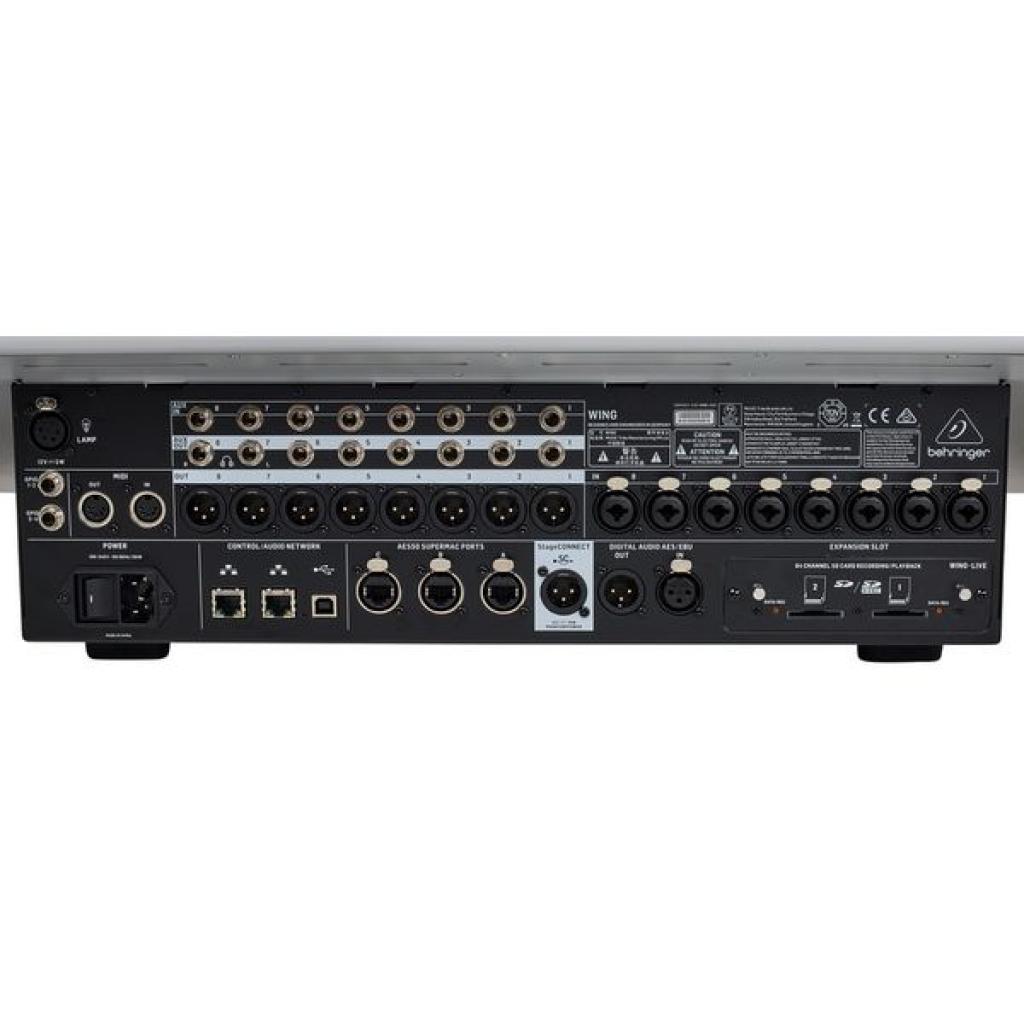

• 8 Analog Midas line outputs
• 8 AUX inputs
• 6 AUX outputs and 2 monitor outputs: 6.3 mm jack balanced mono
• 2 Headphone outputs
• 3 AES50 ports: 48 x 48 channels per port - cable length up to 80 metres
• MIDI input/output
• 2 Programmable GPIOs
• 48 x 48 Channel USB interface
• Expansion slot, including a WING-LIVE card
• 64 x 64 channel SD recorder/player
• StageCONNECT 32-channel port for personal monitoring
• 16 FX engines: 8 premium, 8 standard
• 6-Band EQ in the inputs
• 8-Band EQ in the outputs
• Dimensions (H x W x D): 201 x 870 x 575 mm
• Weight: 24 kg
