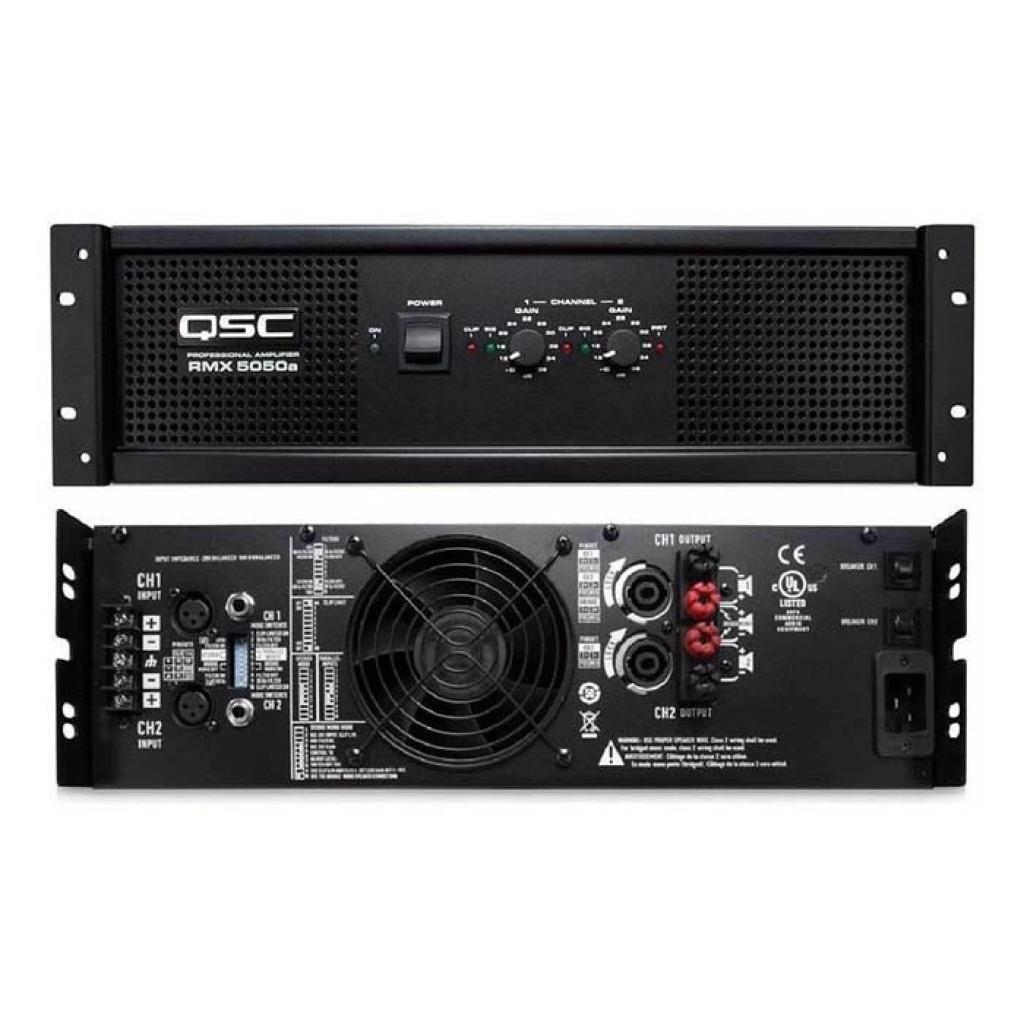

QSC RMX5050A

Features

• Compact size — up to 2500 watts in two rack spaces, or 5000 watts in three rack spaces
• High-current toroidal transformers, for greater 2-ohm power and low noise
• Independent user-defeatable clip limiters reduce distortion
• Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom
• The 4000-watt RMX4050a operates on a standard 15 amp plug (120V)
• Both the RMX4050a and the RMX5050a feature a dual mono, high-current power supply for increased reliability and performance
• The RMX4050a's particularly exceptional combination of cooling capacity and electrical efficiency provides robust thermal performance suitable for high continuous power in 2-ohm stereo or 4-ohm bridged applications.
• Balanced 1/4-inch (6.3 mm) TRS, XLR, and barrier strip inputs
• Touch-proof binding post and Neutrik Speakon® outputs
• Front mounted gain controls for easy access
• Signal and clip LED indicators for monitoring performance
• Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
• 3-year warranty plus optional 3-year extended service contract

Model         RMX 5050a Power per Channel, Stereo Mode (both channels driven) 8Ω, FTC 20 Hz–20 kHz, 0.1% THD         1050 W 8Ω, EIA 1 kHz, 0.1% THD         1100 W 4Ω, FTC 20 Hz–20 kHz, 0.1% THD         1600 W 4Ω, EIA 1 kHz, 0.1% THD         1800 W 2Ω, FTC 20 Hz–20 kHz, 1% THD         2000 W 2Ω, EIA 1 kHz, 1% THD         2500 W Power, Bridge-Mono Mode 8Ω, FTC 20 Hz–20 kHz, 0.1% THD         3200 W 8Ω, EIA 1 kHz, 0.1% THD         3600 W 4Ω, EIA 1 kHz, 1% THD         5000 W 100 V Direct Drive, EIA 1 kHz, 1% THD         – Signal to Noise (20 Hz–20 kHz) -100 dB Distortion (SMPTE-IM)   < 0.02% Input Sensitivity at 8Ω     1.42V (+5.3 dBu) Voltage Gain       64x (36 dB) Output Circuitry     3-tier Class H Current Draw (120 V AC)
Typical, 1/8 power pink noise at 4Ω*
Severe, 1/3 power pink noise at 4Ω*
13.9 A
26.9 A AC Mains Plug
100/120V
230V
NEMA 5-20
CEE7/7 Distortion (typical)
20 Hz–20 kHz, 10 dB below rated power
1 kHz and below, full rated power


< 0.02% tdD, 4Ω and 8Ω

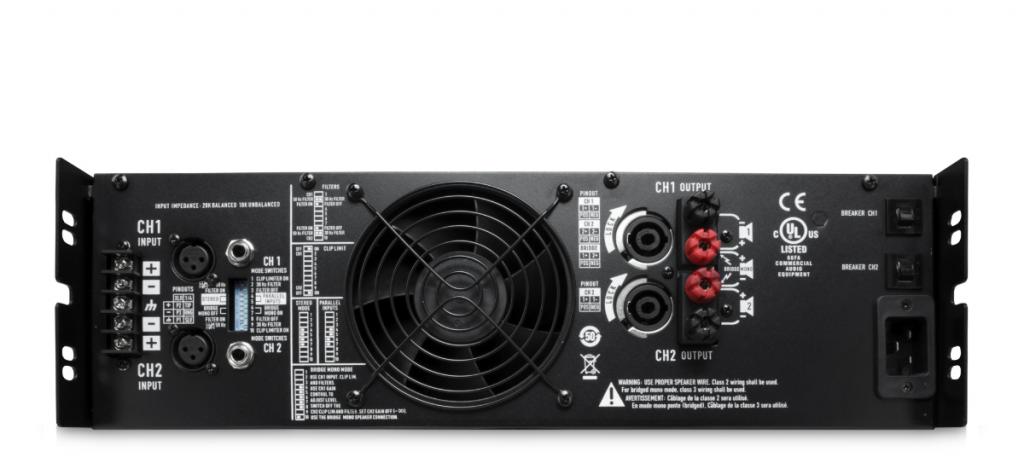

< 0.02% tdD, 4Ω and 8Ω Frequency Response 20 Hz–20 kHz: +0/-1 dB -3 dB points: 5 Hz and 50 kHz (LF filter bybassed, 8Ω) Damping Factor (1 kHz and below)   > 250 at 8Ω Input Impedance 10 kΩ unbalanced; 20 kΩ balanced Input Stage Clipping   6.4 V rms (+18 dBu) Cooling Continuously variable speed fan, back-to-front air flow Connectors (each channel) Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+)
Output: Touch-proof binding posts; Neutrik Speakon® Controls Front: AC switch; Channel 1 & 2 gain knobs
Rear: 10-position DIP switch LED Indicators Power on: Green; Signal: Yellow (1 per channel); Clip/Protect: Red (1 per channel) Amplifier Protection Full short circuit, open circuit, tdermal, ultrasonic, RF protection. Stable into reactive or mismatched loads Load Protection Turn-on/off muting; AC coupling (850, 1450); Triac crowbar (1850HD, 2450, 4050HD, 5050) on each channel Product Dimensions (H×W×D)   132 (3 RU) × 482 × 404 mm
5.25 (3 RU) × 19 × 15.9 in Carton Dimensions (H×W×D)   610 × 560 × 229 mm
24 × 22 × 9 in Net Weight         33.1 kg / 75 lb Shipping Weight         37.6 kg / 87 lb Power Requirements 100, 120, 230 V AC (factory configured), 50–60 Hz
