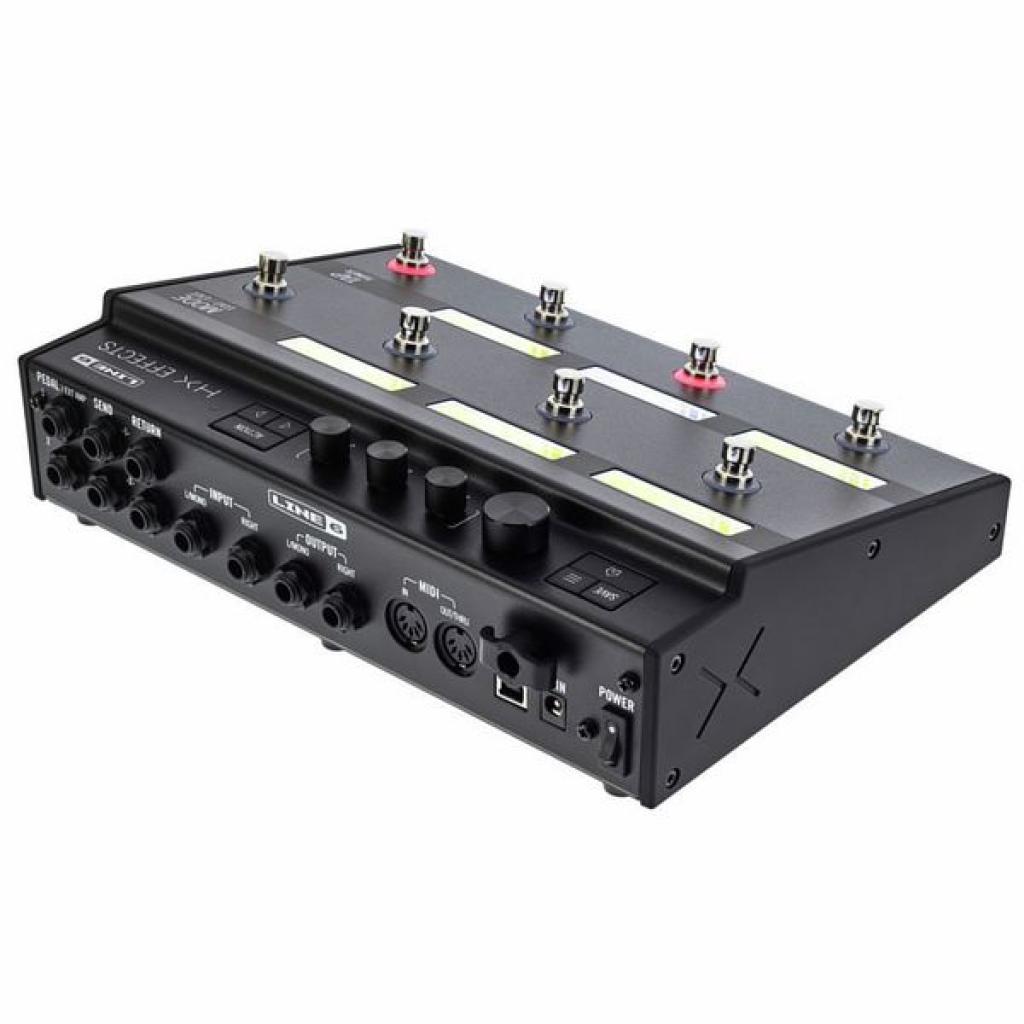

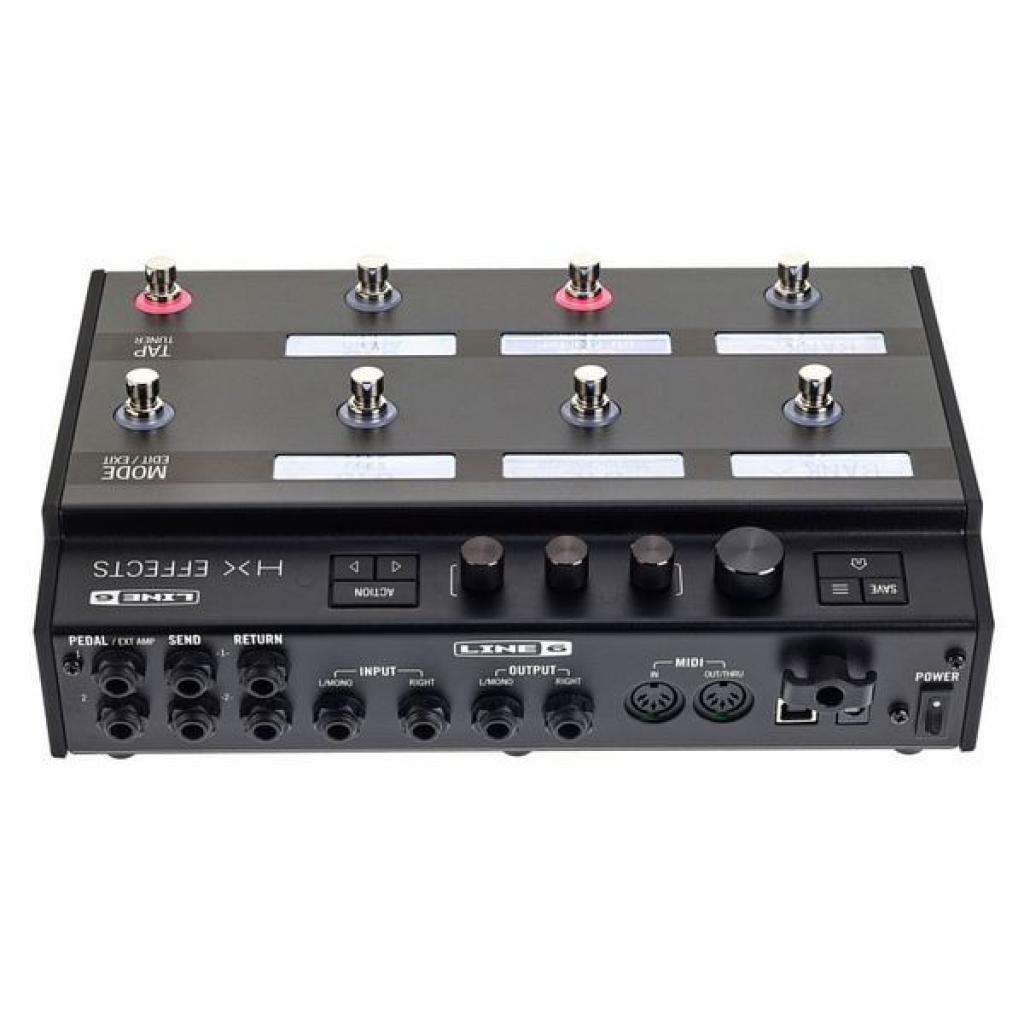

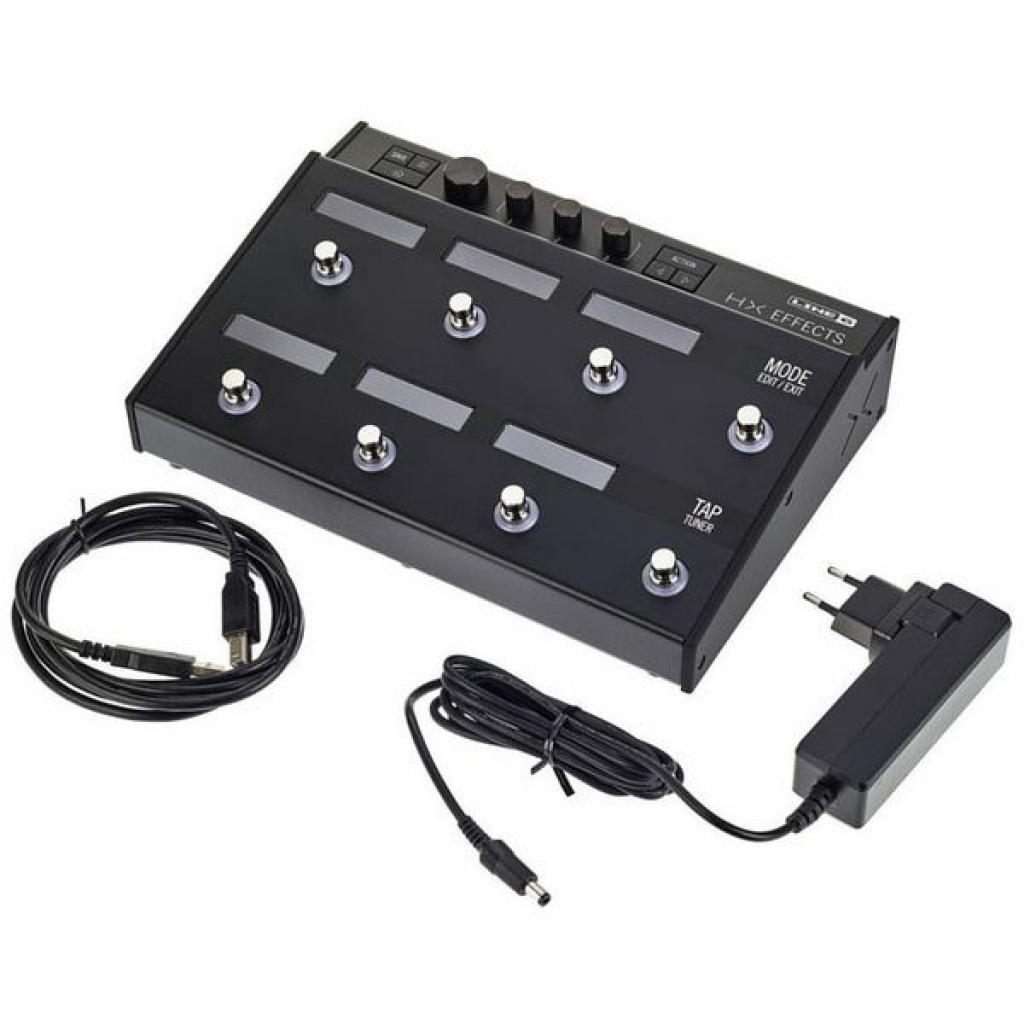

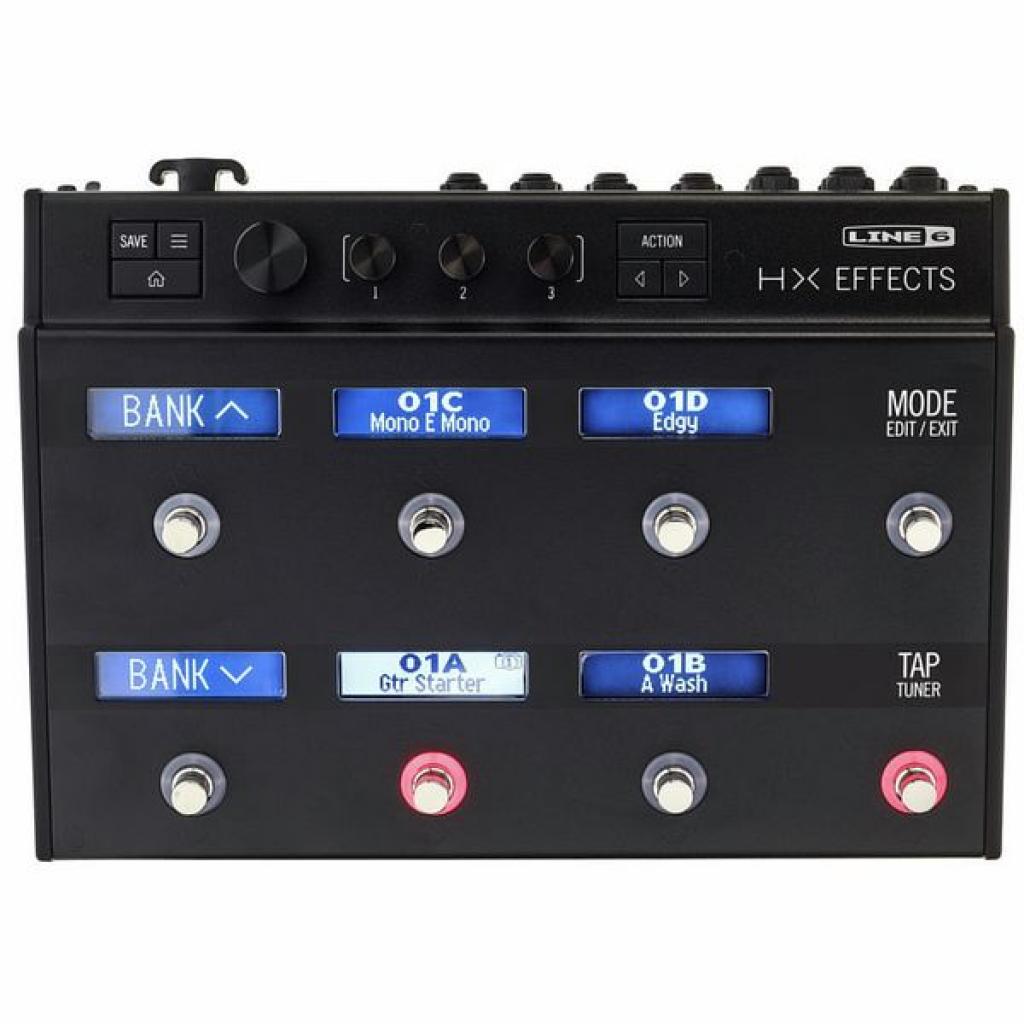

LINE6 HX EFECTS

Multi-Effect Pedal

• More than 100 HX effects
• Up to 9 effects can be used simultaneously
• Import of own Impulse Responses (IRS)
• Parallel stereo signal paths
• Inputs switchable between line/instrument level
• 2 Assignable effect loops - stereo linkable
• 2 Expression pedal inputs and up to 4 amp switch outputs
• LED displays for naming pedals and patch names
• Colour-coded LCD rings to distinguish effect types (delay, modulation, etc.)
• Touch-sensitive footswitches for quick access to effect parameters and functions
• 4 Continuos knobs
• Push buttons: Save - Edit - Home - Action - Left - Right
• LED displays
• 8 Touch-sensitive footswitches with LCD ring
• True Bypass
• Power supply with mains adapter (included)
• Dimensions: (W x D x H): 274 x 201 x 76 mm
• Weight: 2.2 kg

Connections:

• Mono/stereo input: 2x 6.3 mm jack
• Mono/stereo output: 2x 6.3 mm jack
• FX Loop 1 & 2: 4x 6.3 mm jack
• 2x Pedal/ext amp: 2x 6.3 mm stereo jack
• MIDI In/Out
• USB
